BATH DECKCHAIR AKVOLITO™

AKVOLITO

Bath deckchair AKVOLITO™ was designed for keeping the hygiene with proper stabilization. It is created for disabled children and those whose have limited mobility.

Category:

SPECIAL FEATURES

I CLASS MEDICAL PRODUCTI CLASS MEDICAL PRODUCT
INNOVATIVEINNOVATIVE
RECOMMENDED BY SPECIALISTSRECOMMENDED BY SPECIALISTS
CHEMICAL FREECHEMICAL FREE
FOR KIDSFOR KIDS
WATERPROOFWATERPROOF
LATEX-FREELATEX-FREE
FULL RANGE OF ADJUSTMENTFULL RANGE OF ADJUSTMENT

PURPOSE OF USE

  • cerebral palsy (CP)
  • paralysis or paresis
  • poliomyelitis (Heine-Medin disease)
  • limb injuries or limb amputation
  • limb deformities
  • joint arthritis and injuries

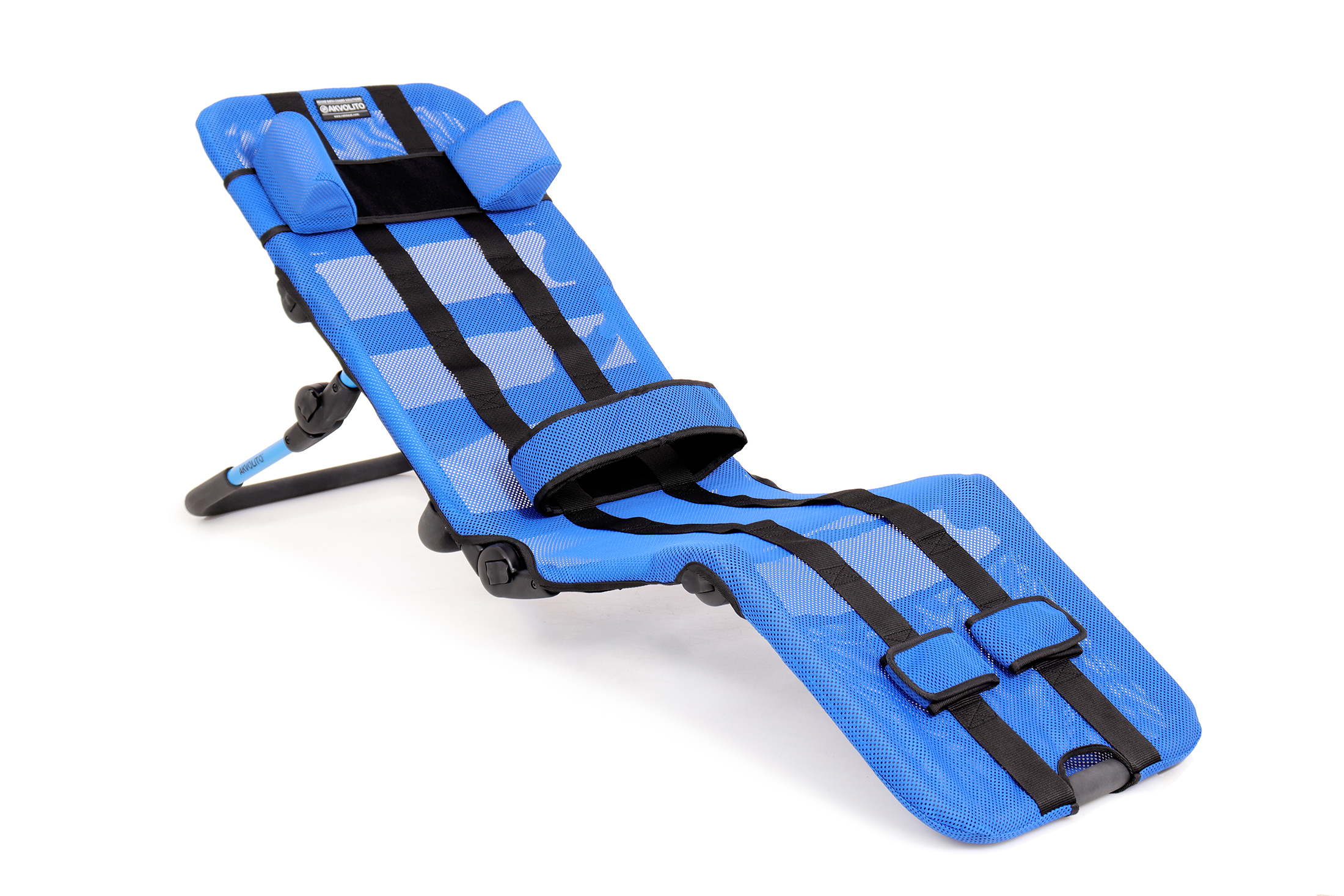

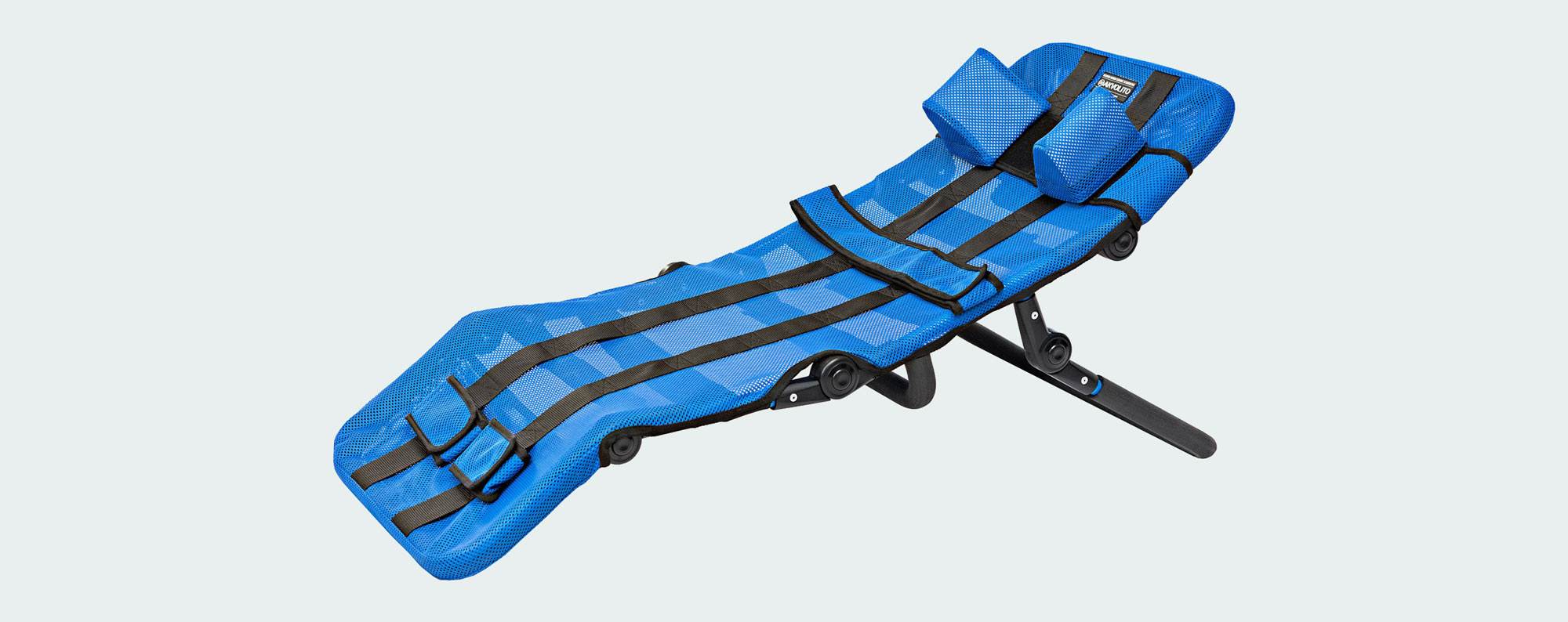

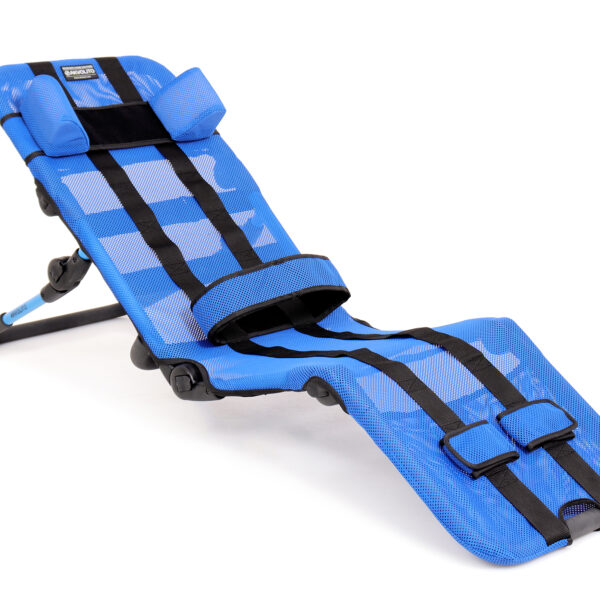

WHAT IS CHILDREN BATH DECKCHAIR AKVOLITO™?

Bath deckchair AKVOLITO™ was designed for keeping the proper hygiene of children suffering from neurological and orthopedic conditions. Many parents or caretakers of children with disabilities know how hard are daily routines. Due to this fact, we launched excellent bath deckchair for stabilizing the child during the bath time and reducing the risk of injury. Stable and comfort child’s position in the deckchair makes day-to-day routines and family life easier.

Lightweight, aluminum solid frame protects from adverse effects of water. Furthermore, frame is equipped with foam covers that protect bathtub or kids bath tub from scratching. Unique construction of frame makes it possible to adjust the tilt angle of four areas namely footrest, seat, backrest and headrest. Moreover, seat can be adjusted at any height.

Head support, with width adjustment, keeps the child’s head in the proper position and prevents against its involuntary movement. It reduces the risk of chocking on water during bath time.

Trunk support makes it possible to adopt correct body position while being in a chair. It stabilizes the trunk muscles and provides comfort of use.

Lower limb supports keep the proper kid’s position and prevent against the involuntary movement and reflexes.

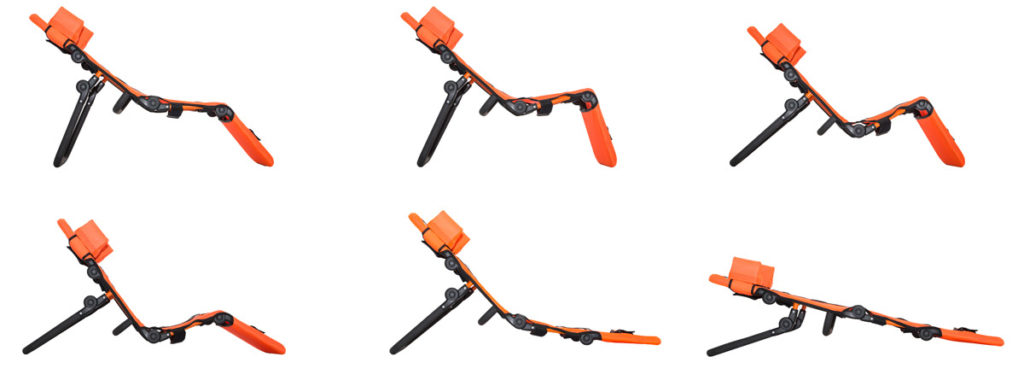

Innovative construction of AKVOLITO™ allows to adjust the chair in the required positions. After folding up, the chair has really reduced size.

AKVOLITO

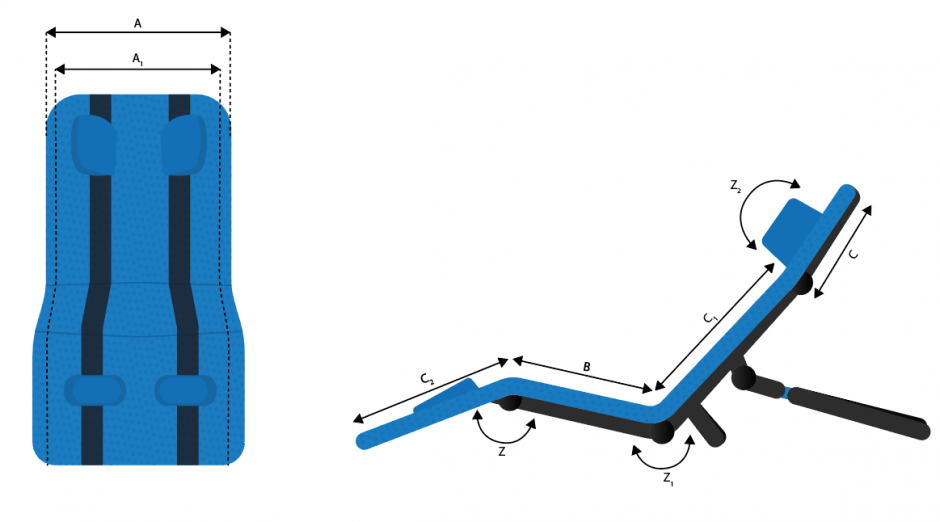

SIZE TABLES

Symbol Measurement Unit Size Baby Size 0 Size 1 Size 2 mini Size 2 Size 3 Size 4
A Product width [cm] 35 35 40 35 40 45 50
A1 usable width [cm] 26 26 31 26 31 36 41
B Seat depth [cm] 22 25 28 28 33 35
C Headrest height [cm] 19 22 26 26 30 33
C1 Backrest height [cm] 28 33 37 37 43 50
C2 Lower leg lenght [cm] 24 28 31 31 36 41
B+C2
Seat depth with lower leg length
[cm] 41 46 53 59 59 69 79
C+C1
Backrest height with backrest height
[cm] 41 47 55 63 63 73 83
Z Footers tilt angle (relatively to the seat) [°] 90 – 180 90 – 180 90 – 180 90 – 180 90 – 180 90 – 180
Z1
Backrest tilt angle (relatively to the seat)
[°] 90 – 180 90 – 180 90 – 180 90 – 180 90 – 180 90 – 180 90 – 180
Z2 Headrest tilt angle (relatively to the backrest) [°] 144 – 234 144 – 234 144 – 234 144 – 234 144 – 234 144 – 234
Max. user weight [kg] 25 25 30 30 30 45 60
 W Indicative user height* [cm] 55 – 75 < 80 < 90 < 105 < 100 < 120 < 160

SIZES

Weight and dimensions of the device

Measurement Unit Size Baby Size 0 Size 1 Size 2 Size 3 Size 4
Width [cm] 35 35 40 45 50 50
Width after folding [cm] 35 35 40 45 50 50
Length [cm] 82 72 83 93 105 114
Length after folding [cm] 41 50 60 66 76 86
Height [cm] 55 50 57 60 64 67
Height after folding [cm] 30 23 23 23 23 23
Weight [kg] 2,2 3,0 3,6 3,8 5 5,8

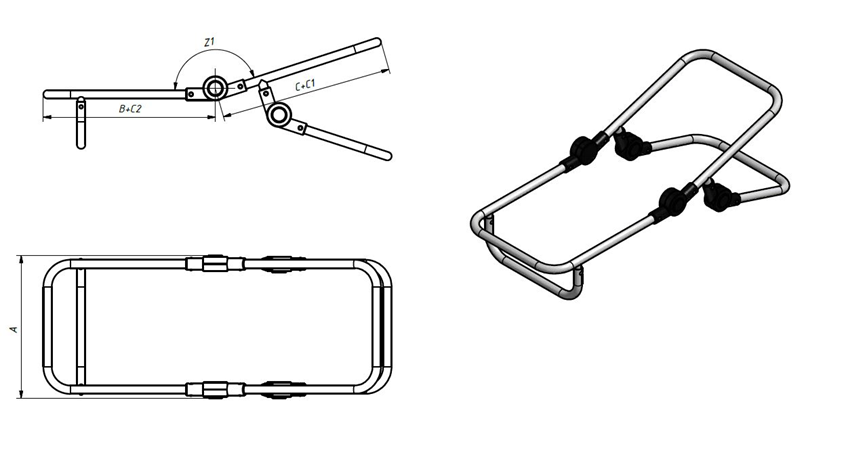

SIZE BABY

Downloads

AVAILABLE COLOURS

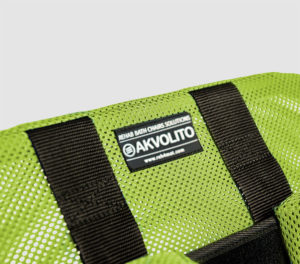

Green Rozmiar 1

Green
Size 1

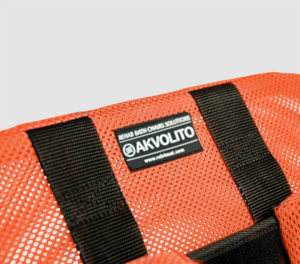

Orange Rozmiar 2

Orange
Size 2

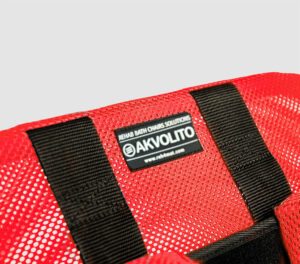

red

Red
Size 2 mini

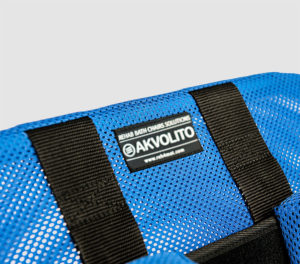

Blue Rozmiar 3

Blue
Size 3

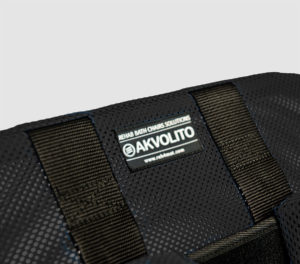

Black Rozmiar 4

Black
Size 4

Optional equipment


Code AKVOLITO
Trade Name BATH DECKCHAIR
Model

CE MD Class I medical device in accordance with the Regulation (EU) 2017/745 of the European Parliament and of the Council of 5 April 2017 on medical devices.
